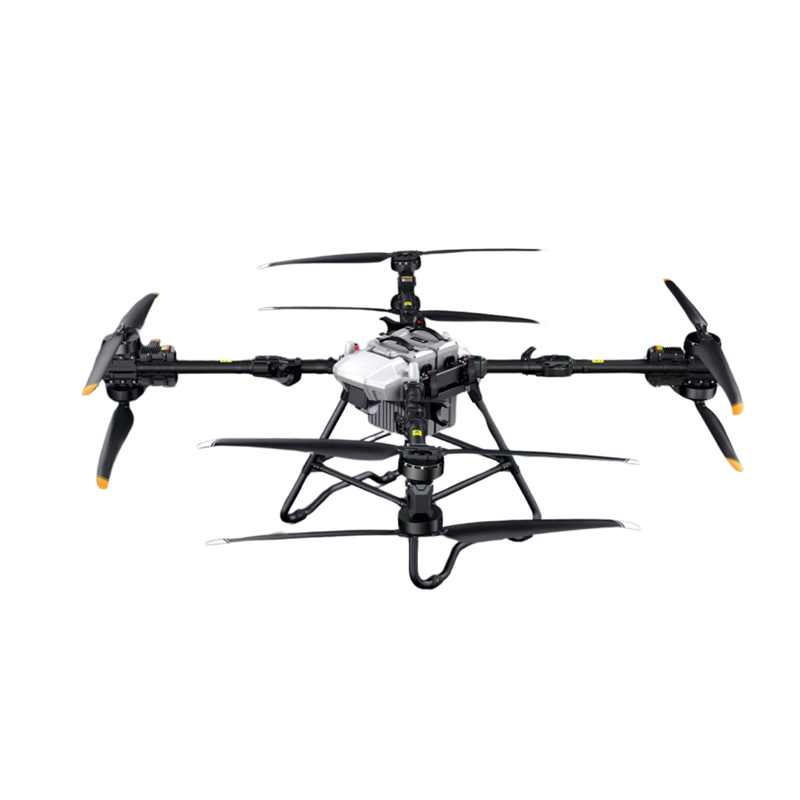

XTD2000Pro Large UAV
XTD Series Quad-Rotor Large UAV
The XTD Series Quad-Rotor Large UAV features a large size, easy operation, low requirements for combat environments, low cost, simple structure, and strong survivability.
It can also be used as an unmanned target drone and is compatible with various payload equipment developed by our company.
Suitable for a wide range of applications including fire rescue, military reconnaissance and strike, police security, forest fire fighting, urban law enforcement and inspection, etc., it meets diverse customer needs.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
XTD Series Quad-Rotor Large UAV
The XTD Series Quad-Rotor Large UAV features a large size, easy operation, low requirements for combat environments, low cost, simple structure, and strong survivability.
It can also be used as an unmanned target drone and is compatible with various payload equipment developed by our company.
Suitable for a wide range of applications including fire rescue, military reconnaissance and strike, police security, forest fire fighting, urban law enforcement and inspection, etc., it meets diverse customer needs.
XTD2000 pro Heavy-Duty Transport UAV
| Aircraft Dimensions | 1800 × 1800 × 1050mm |
| Folded Dimensions | 1150 × 1150 × 1050mm |
| Wheelbase | 2390mm |
| Material | Aviation Aluminum Alloy, Carbon Fiber |
| Empty Weight | 56kg |
| Maximum Payload | 100kg |
| Battery Compartment Size | 250 × 260mm |
| Battery Connector | 500A/QS10 |
| Operating Temperature | -10℃ ～ 50℃ |
| Arm Outer Diameter | 60mm |
| Maximum Take-off Weight (MTOW) | Approx. 180kg |
Handheld Ground Station
| Operating Frequency | 2.4GHz & 5.8GHz Dual-band |
| Chip | Pangu S1 |
| System | Android |
| Effective Signal Range | Approx. 10km (Open, unobstructed) |
| Video Output Interface | HDMI / WLAN |
| Built-in Battery | 7.4V 20000mAh LiPo 2S |
| Battery Life | 20 Hours |
| Display | 7-inch Screen, 1920 × 1200 |
| Brightness | 2000cd/m² |
| Memory Card Type | MicroSD, Max. 128GB |
| Integrated Operation | Unified flight data, Image/Map switch |
| Voice Broadcast | Adjustable real-time voice broadcast |
