DJI FlyCart 200 carries unmanned aerial vehicles

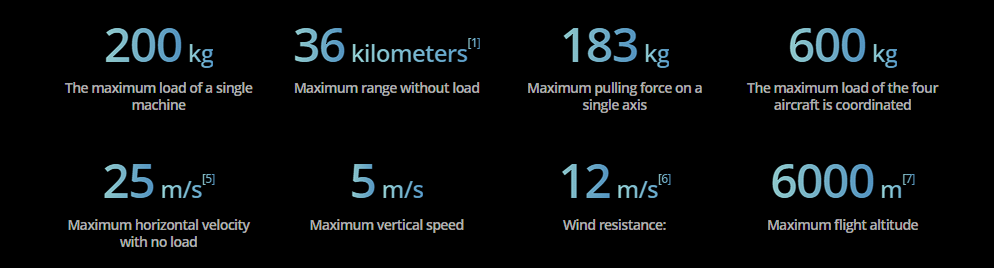

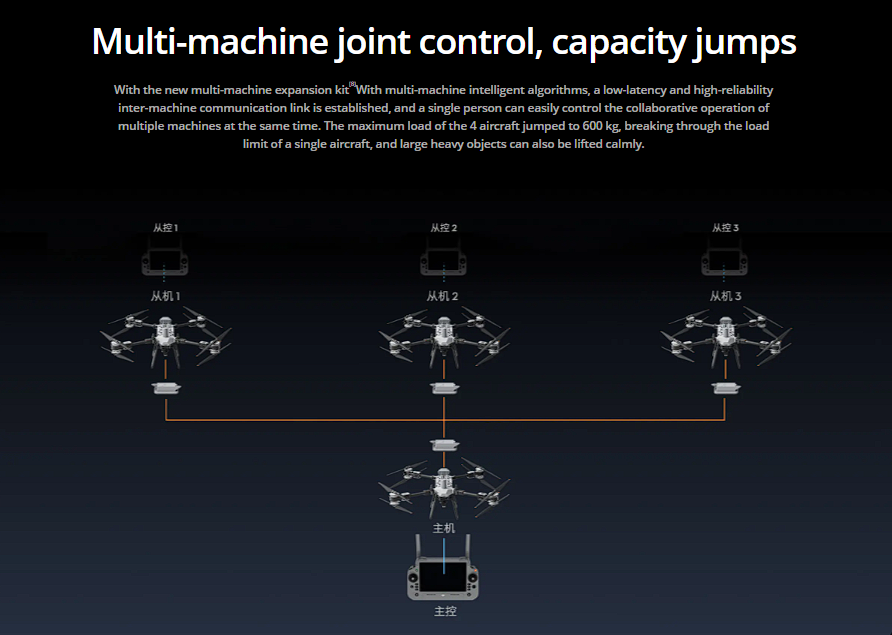

The new DJI FC200 has a maximum load capacity of 200 kilograms per unit and a maximum load capacity of 600 kilograms for four machine cooperation. Supports dual electric and four electric modes, and can also flexibly choose flagship aerial crane and DL200 lifting system. Supports 40km O4 image transmission [2], with clear and smooth long-distance transmission. The new generation of intelligent security system is equipped with 11 sensors to cope with complex environments with ease. Dual PSDK interface, supporting more load expansion. Delivery App、 DJI Operations and the all-new DJI Operations App, with multi platform collaboration and strategic planning.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
FC200 Heavy-Lift UAV Flight Platform – Technical Parameters
| Flight Platform | |
| Airframe Weight (excl. battery) | 98.8kg (with DL200 Lifting System); 103.3kg (with Flagship Aerial Lifting System) |
| Maximum Wheelbase | 2699mm (diagonal) |
| Dimensions (Arms Extended, Props Extended) | 3334mm × 3055mm × 1045mm |
| Dimensions (Arms Extended, Props Folded) | 1786mm × 1852mm × 1045mm |
| Dimensions (Arms Folded, Props Folded) | 1154mm × 984mm × 1045mm (without parachute); 1272mm × 984mm × 1045mm (with parachute) |
| Folding Method | Folded towards fuselage |
| Onboard Battery Quantity | Supports dual batteries, four batteries |
| Maximum Flight Distance | Full load: 10km (4 batteries), 6km (2 batteries); No load: 36km (4 batteries), 24km (2 batteries) |
| Maximum Hover Time | Full load: 7min (4 batteries), 4min (2 batteries); No load: 25min (4 batteries), 17min (2 batteries) |
| Operating Temperature Range | -20℃ to 40℃ *Solar radiation estimated at 960W/m²; long-term high-temperature use of some components may cause lifespan reduction* |
| Overall Protection Rating | IP55 *Protection rating is not permanent and may decrease due to wear from long-term use. Avoid flying in heavy rain (24-hour precipitation ≥24.9mm). Power system is not covered by this protection rating; it is recommended to idle on the ground for 1 minute after flying in rain* |
| Hover Accuracy | With RTK enabled: ±10cm (horizontal), ±10cm (vertical); Without RTK: ±0.6m (horizontal), ±0.3m (vertical) |
| GNSS | Full-system version: GPS + Galileo + BeiDou + GLONASS; BeiDou-only version: BeiDou |
| Maximum Ascent Speed | 5 m/s |
| Maximum Descent Speed | 5 m/s |
| Maximum Horizontal Flight Speed | 25 m/s (no load), 20 m/s (full load) |
| Maximum Flight Altitude | 6000m |
| Maximum Wind Resistance | 12 m/s *Maximum wind speed sustainable during takeoff and landing phases: 12 m/s* |
