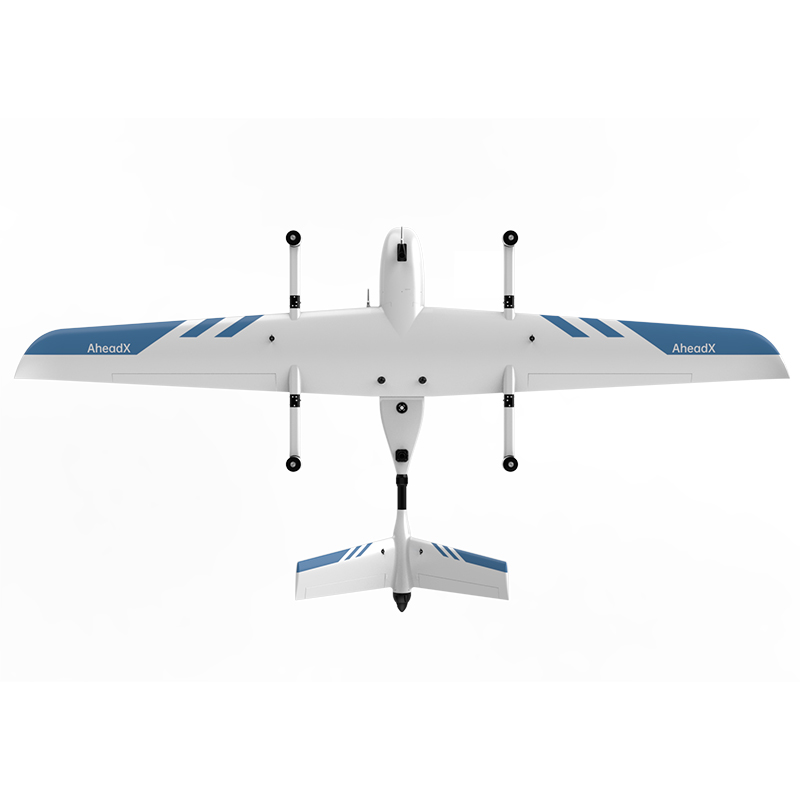

XTF2000Pro VTOL UAV
XTF2000Pro is a customizable reconnaissance VTOL UAV.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
XTF2000Pro is a customizable reconnaissance VTOL UAV.
XTF2000pro Fixed-wing UAV – Core Parameters
| Fuselage Length | <2m |
| Wingspan | <3.5m |
| Fuselage Material | Glass Fiber + Carbon Fiber + PVC Reinforced Plate |
| Maximum Take-off Weight | <25kg |
| Maximum Payload Capacity | 10kg |
| Power System | Low Noise, Brushless, Electric |
| Packaging Box Size | 128×59×59cm |
| Maximum Flight Time | 180min |
| Maximum Single Flight Range | 150km |
| Cruising Speed | 75km/h |
| Wind Resistance | ≤Level 6 |
| Maximum Practical Ceiling | 6000m |
| Operating Temperature | -20℃~50℃ |
| Take-off and Landing Mode | Fully Automatic Vertical Take-off and Landing |
| Horizontal Positioning Accuracy | 1cm+1ppm |
| Vertical Positioning Accuracy | 2cm+1ppm |
| Maximum Data Link Communication Distance | 50km (Standard); 60km (Maximum) |
Visible Light Lens Parameters
| Resolution | 1920×1080 |
| Lens Focal Length | 6.5mm-162mm |
| Horizontal Field of View | 58.1°-2.3° |
| Optical Zoom | 30x |
| Fog Penetration Function | Yes |
Infrared Lens Parameters
| Detector Type | Uncooled Focal Plane |
| Detector Resolution | 640×512 |
| Lens Focal Length | 25-50mm (4x Digital Zoom) |
| Field of View | 12.5° (Horizontal) ×10° (Vertical) |
| Pseudo Color | Black Hot, White Hot |
Wide-angle Lens Parameters
| Resolution | 1920×1080 |
| Lens Focal Length | 3.14mm |
| Horizontal Field of View | 86° |
| Vertical Field of View | 54.4° |
Laser Ranging Parameters
| Ranging Range | 5~2000m |
| Ranging Accuracy | ±1m |
| Ranging Frequency | 1~4Hz |
| Laser Wavelength | 905nm |
Oblique Photography Gimbal Parameters
| Model | 6100 (Orthophoto) |
| Effective Pixels | 61 Million |
| Sensor Size | Full Frame (35.7×23.8mm) |
| Image Resolution | 9504×6336 |
| Tilt Angle | — |
| Lens Focal Length | 40/56 mm |
Ground Equipment Parameters
| Ground Station | HD Image Transmission Remote Controller with Screen, HD High-brightness Touch Display ≥5.5 inches |
