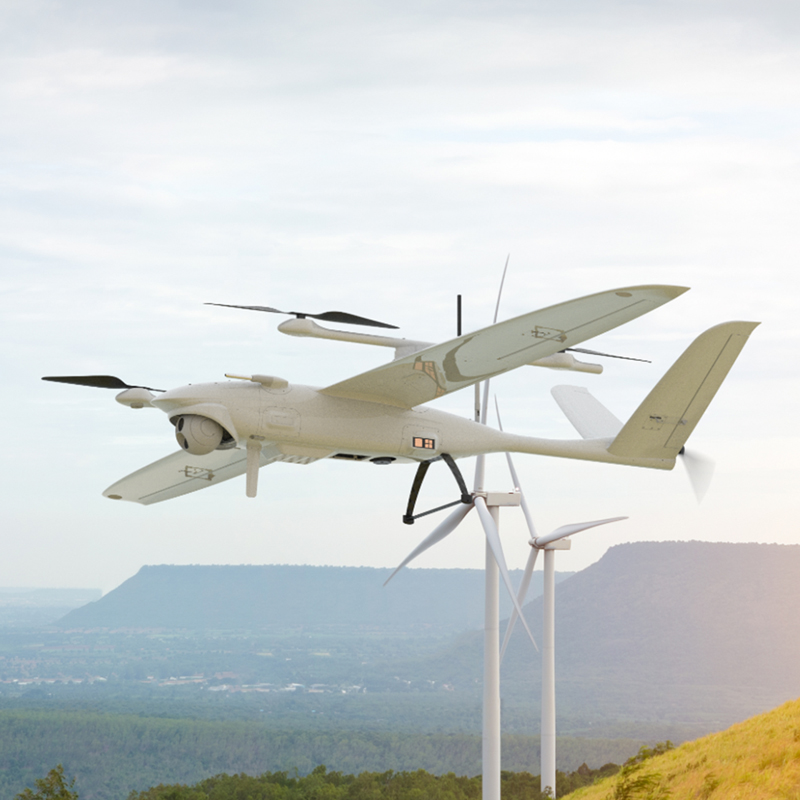

XT13V Unattended UAV Airport
XT13V adopts pure electric drive mode, with a load capacity of 3kg, a battery life of 200 minutes, and a maximum range of 180km. It is a drone specially suitable for unmanned airports
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

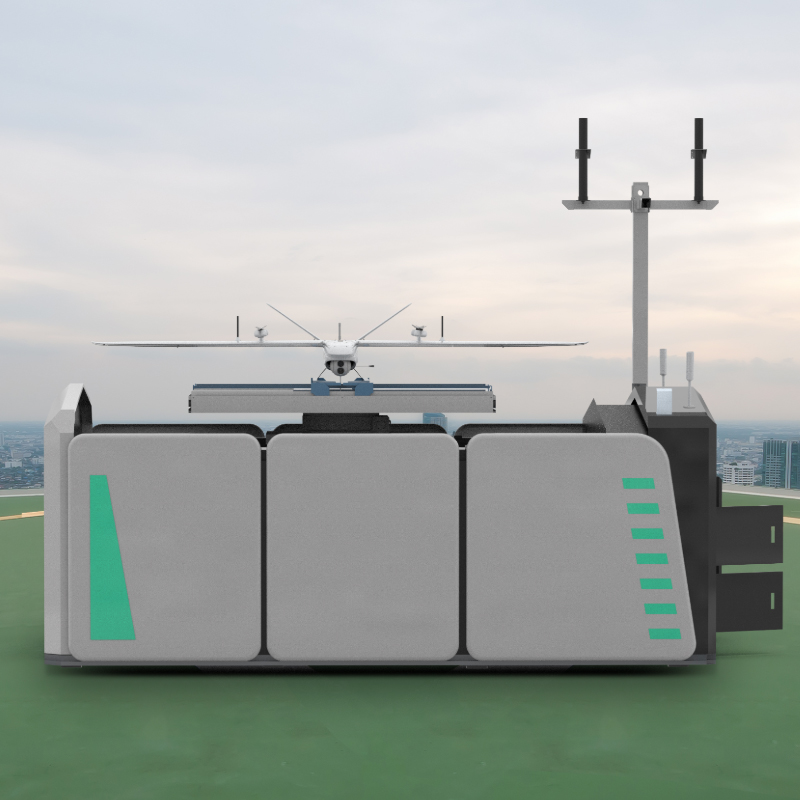

The Cloud Patrol Unmanned System is composed of the XT13V VTOL fixed-wing UAS and the AH13 VTOL fixed-wing UAS docking station, featuring intelligence, automation, efficiency, and precision. The system has functions such as intelligent storage, remote control, autonomous takeoff and landing, intelligent operation, automatic recovery, automatic charging, data return, and intelligent analysis for the composite-wing drone, enabling autonomous, full-process, and unattended operation of the drone. The ZT-13V composite-wing UAS used in the system has an effective single-sortie flight time of 200 minutes and a maximum inspection length of 180 km. The system can be widely applied in industries such as railways, power, pipelines, mining, forestry and grassland, emergency response, border defense, maritime affairs, and smart cities.
XT13V UAV Core Parameters
| Aircraft Dimensions | 3.00×1.77m |
| Maximum Take-off Weight | 18kg |
| Wind Resistance | 8m/s |
| Maximum Take-off Altitude | 3000m |
| Endurance Time | 180min |
| Cruising Speed | 55km/h |
| Payload Capacity | 3kg |
| Practical Ceiling | 5000m |
| Measurement & Control Range | 50+km |
| Positioning & Navigation | Supports Beidou Only |
