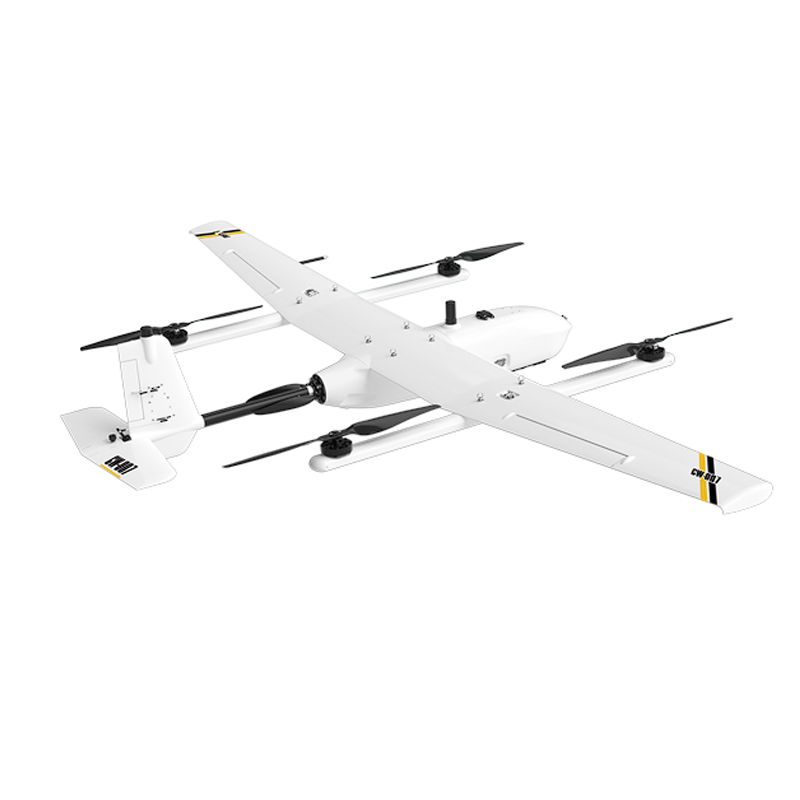

CW-007 Manpack UAV
Backpack Design, integrated system, the combination of quick-insert payload and software guarantee the accuracy of data of any solutions. The new intelligent power management module simplifies the user's workflow and is ideal for single controlled.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
Compact VTOL UAV – Technical Parameters
| Hardware | |
| Fuselage Length | 1.3m |
| Wingspan | 2.2m |
| Maximum Takeoff Weight (MTOW) | 6.8kg |
| Electro Motor | Low noise, brushless |
| Payload | 1 kg |
| Packing Size | 1200×500×400mm |
| Flight Performance | |
| Endurance | 55min |
| Cruising Speed | 61.2km/h |
| Wind Resistance | Takeoff/Landing: 10 m/s; Cruising: 13.8 m/s |
| Ceiling | 6000m |
| Max Takeoff Altitude | 4500m |
| Vertical Positioning Accuracy | 3cm |
| Horizontal Positioning Accuracy | 1cm+1ppm |
