XD Series Reconnaissance & Transport UGV
XD50、XD100、XD200
Tracked All-Terrain Unmanned Ground Vehicle
This tracked all-terrain unmanned ground vehicle is specially designed for extreme terrains such as mountains, farmland, and muddy ground. Equipped with 180mm-wide iron-core rubber tracks and an independent suspension damping system, it can easily conquer 35° steep slopes, 300mm vertical obstacles, and 400mm trenches.
Its differential steering structure supports in-place rotation, maintaining precise maneuverability even in rugged areas, turning complex terrain into a smooth path.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

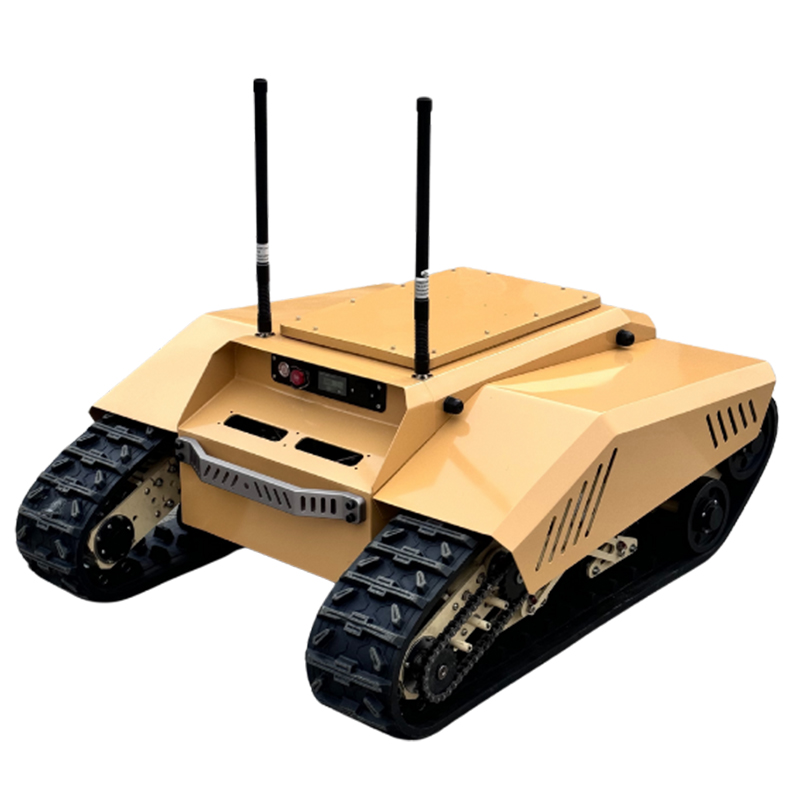

Tracked All-Terrain Unmanned Ground Vehicle
1. Chassis & Mobility
- Tracked differential steering, supports in-place rotation.
- Tracked chassis designed for stable operation in complex terrains such as mountains, farmland, and rough ground.
2. Remote Control & Communication
- Remote controller with video and data transmission link.
- Controls forward/backward movement, left/right steering, and in-place rotation.
- Control range and real-time video transmission: up to 1000 meters in line-of-sight environment.
2.1 Motion Control
- PID closed-loop control system.
- Real-time feedback of vehicle speed, linear velocity, and angular velocity.
2.2 Expansion Interface
- Equipped with UART / CAN communication interfaces and corresponding communication protocols.
- Supports command control from upper-level host computer.
3. Power Supply System
3.1 Main Battery
- 48V 30Ah explosion-proof lithium battery with charger.
- Built-in overcharge and over-discharge protection.
3.2 Power Distribution
- Reserved power output interfaces: 48V, 24V, 12V, and 5V.
3.3 Charging
- AC220V independent aviation plug charger.
Unmanned Ground Vehicle Chassis Parameters
| Dimensions (L×W×H) | 1000mm × 800mm × 400mm |
| Chassis Weight | 80kg (including electronic control) |
| Max Payload | 80kg |
| Max Running Speed | 10km/h |
| Damping Structure | Independent suspension shock absorbers |
| Track | 180mm width iron-cored rubber track |
| Max Climbing Angle | 35° |
| Max Obstacle Crossing Height | 300mm |
| Max Trench Crossing Width | 400mm |
| Endurance Time | 180 minutes |
| Endurance Mileage | Approx. 25km (no load), approx. 10km (full load) |
| Protection Rating | IP65 |
